O novo datacenter

Como parte de um programa de melhoria contínua, visando a oferecer melhores produtos e melhores serviços aos nossos clientes, os nossos servidores serão brevemente movidos para um novo data center. Para a construção da nova unidade state-of-the-art situado em Reading (Reino Unido) foi feita muita pesquisa e desenvolvimento, que irá garantir grandes melhorias para os nossos clientes.

Veja mais detalhes tecnológicos

Our new data centre site is a 50,000 square foot facility located in the heart of the Thames Valley, near to the Green Park technology area. Our phase 1 build has 10,400 square foot split over 2 data halls.

prev
next

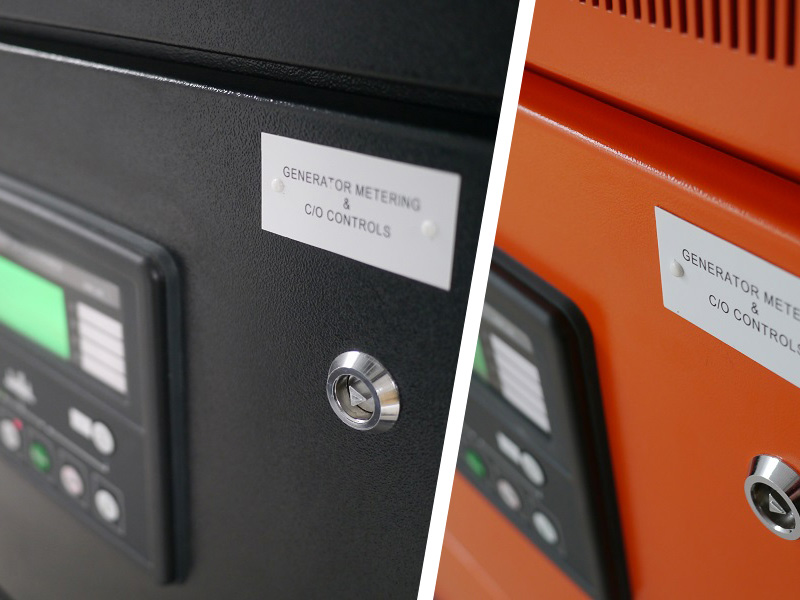

Main electrical panel 'A' and 'B' side

This is part of the main electrical panel feeding the 'A' and 'B' side of our power infrastructure. Everything is duplicated so that every server has two completely independent power feeds for redundancy. We colour-code the panels for easy identification; 'A' is black and 'B' is orange. In the photo you see the automatic controller which starts the generators and transfers to generator power in the event of a mains failure

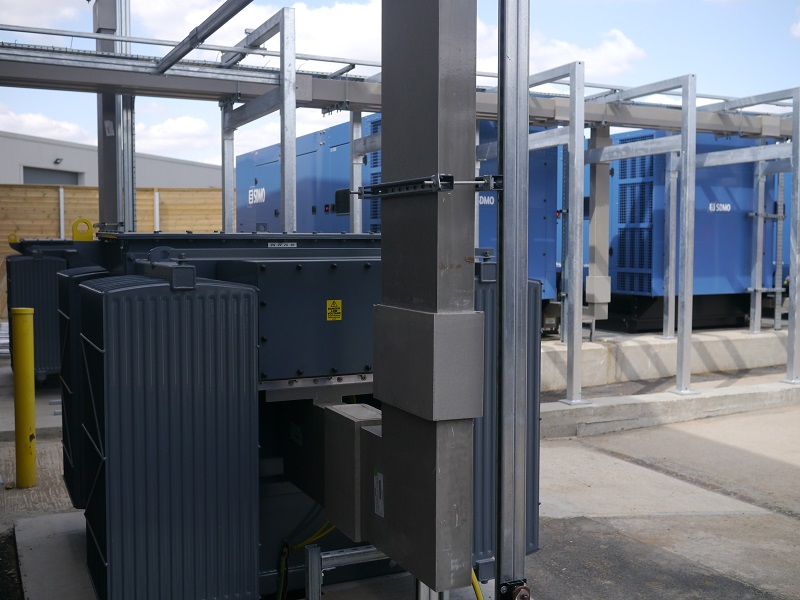

HV Transformers & Generators

Here you can see the 'B' side transformer, with the 'A' side transformer and generator in the background. The overhead gantry carries our busduct - this conducts the power from the transformers/generators back into the building and is a more efficient solution than using copper cables.

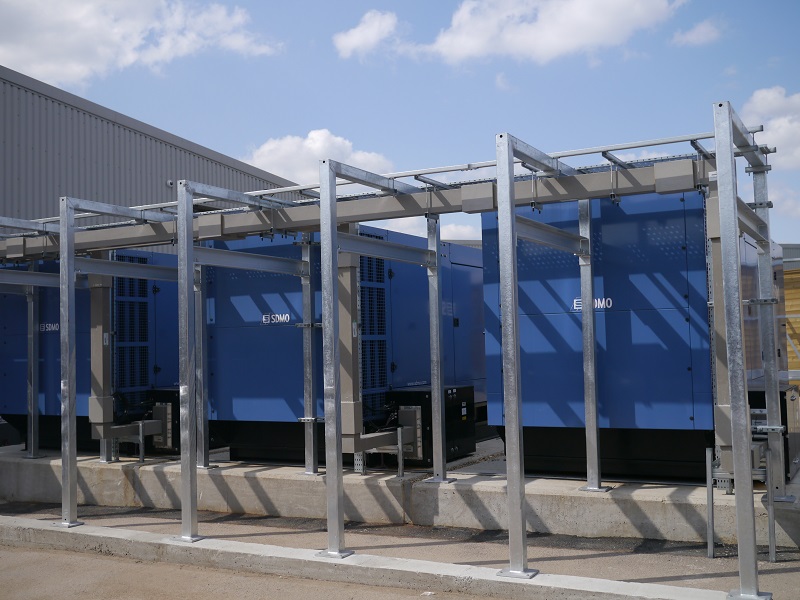

Diesel Generators

We have multiple SDMO 1.1MVA generators for emergency power provision. They are tested monthly, and are configured in an N+1 set up. This means that in the unlikely event the mains power fails, we can tolerate the failure of a generator and still support the entire data centre load.

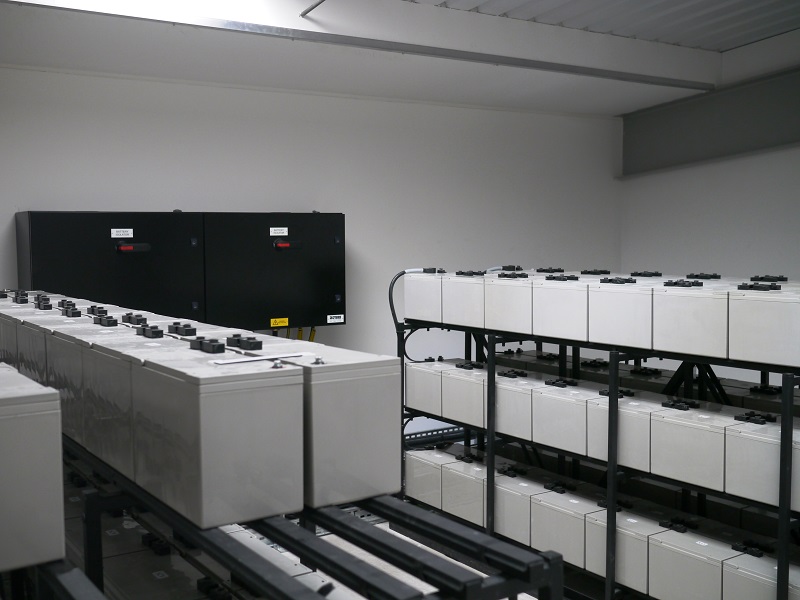

UPS Batteries

This is the 'A' side room of UPS batteries, and is duplicated on the 'B' side. There are further strings of batteries out of frame, and the batteries support the power to the servers if there is a transient or disturbance on the mains load, or alternatively in the time it takes for the generators to start up and support the load.

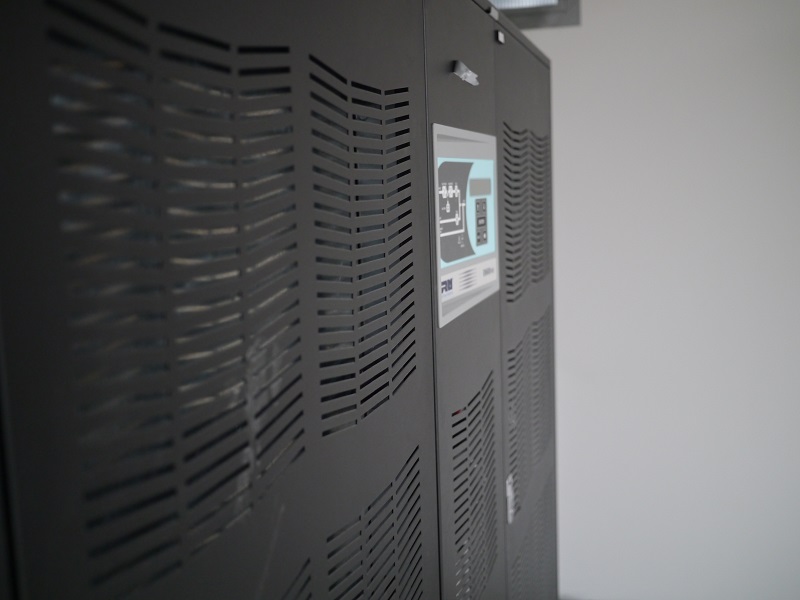

400kVA UPS

This is one of our 400kVA UPS units. The UPS filter and clean the power through an inverter/rectifier and isolation transformer, so the power supplied to the servers is stable and reliable.

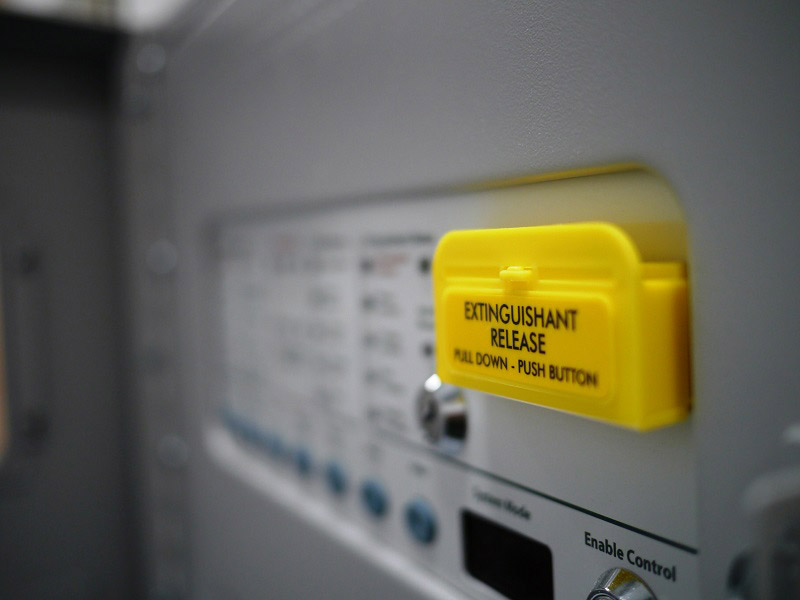

Fire control panel

In this photo you can see the manual release control for the gas extinguishant system. This is part of our fire detection and control system for the data centre, and allows us to manually release the gas extinguishant to put out any fire if one should develop

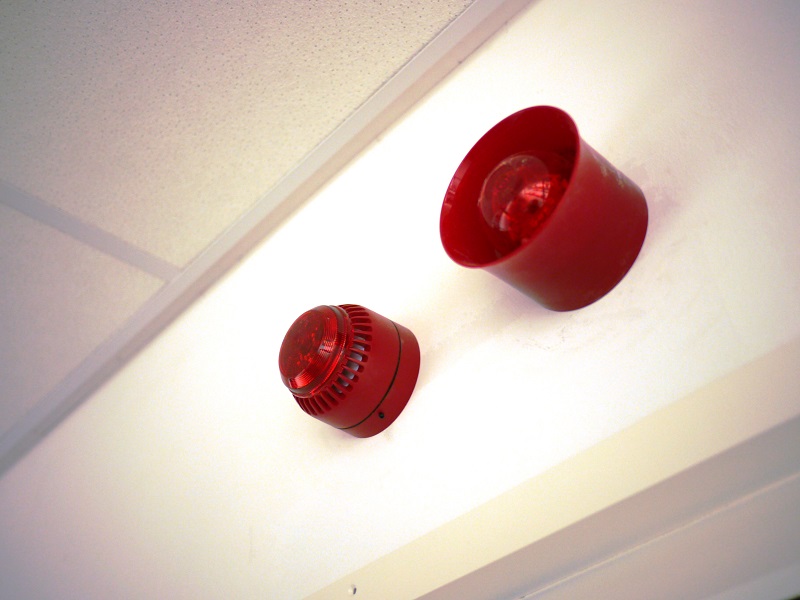

Fire beacons and sounders

When you visit our data centre you will notice the data floors are quite a noisy environment with all the servers operating. For health & safety, we therefore have a large number of fire beacons and sounders to alert any personnel to evacuate the area.

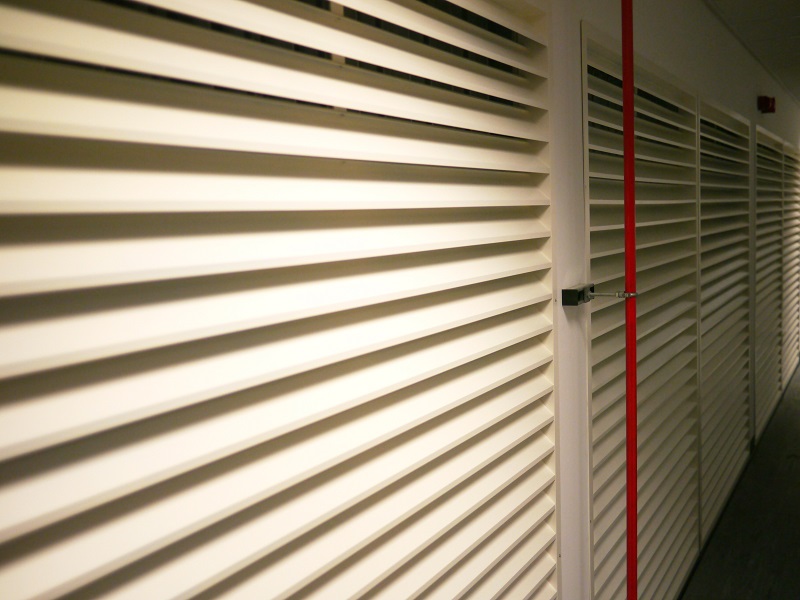

Air conditioning inlet

These louvers allow the cold air into the data floor. On the other side of them are the air conditioning units that take the hot air from the servers, cool it, and then recirculate it into the room. The hot air is ducted from the top of the server racks and into the ceiling.

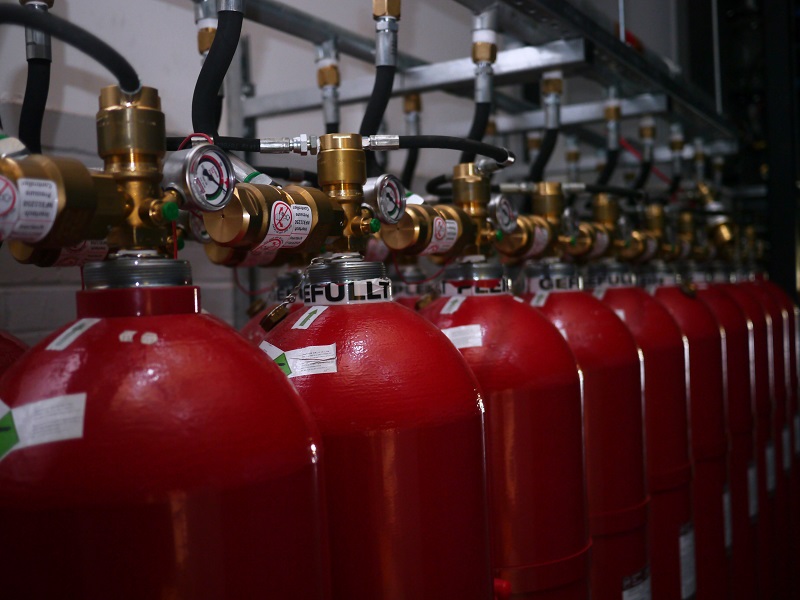

Fire extinguishant bottles

We have a total of 85 bottles, each 80 litres at 300 bar pressure of fire extinguishant. We use the environmentally-friendly mix of 50% argon and 50% nitrogen. When these are released, they reduce the oxygen levels in the room so that any fire cannot be sustained.

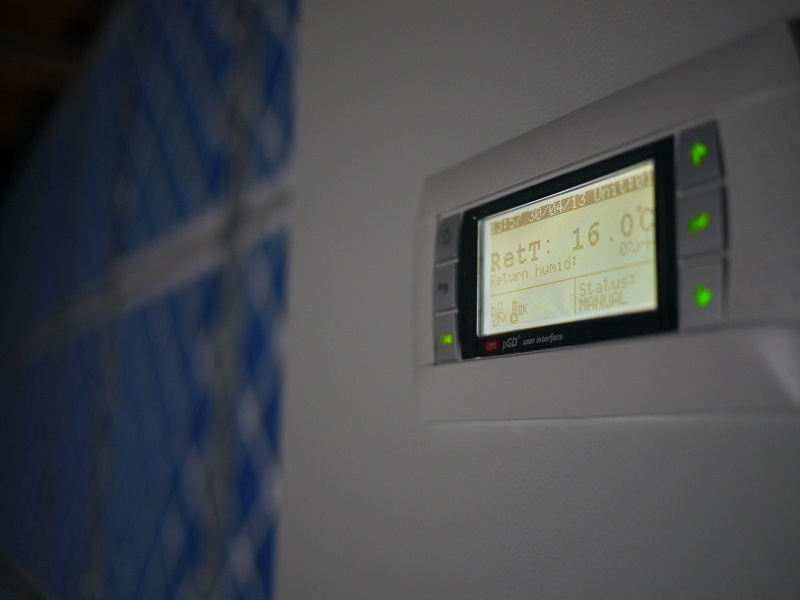

Air conditioning unit

One of our air conditioning units. Each unit can cool over 250kW of heat at peak usage, although we normally run the units at much lower load because we have an N+2 configuration. This means that two units can fail or be taken out of service for maintenance, without impacting on the overall performance of the cooling system.

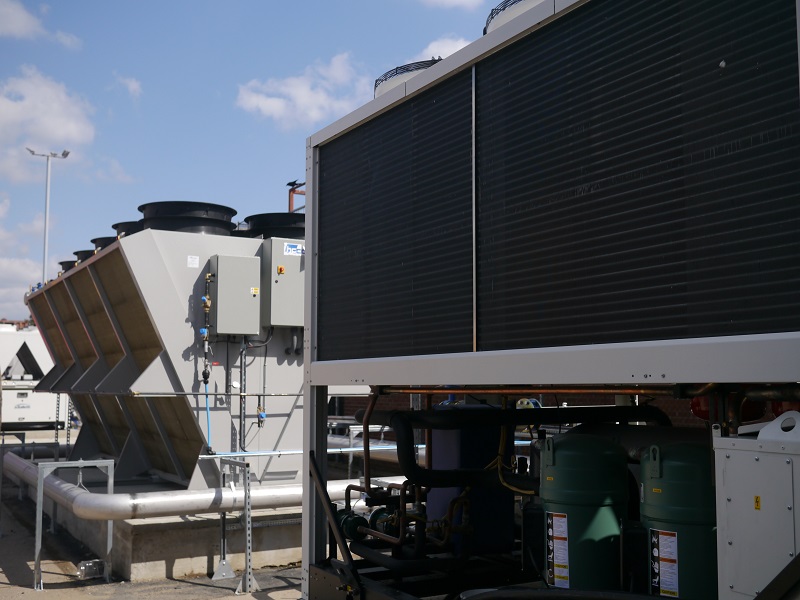

Heat rejection equipment

The chilled water pipework takes the warm water from inside the data centre, and returns it into the data centre as cold water. To remove the heat from the water we use a free cooling chiller combination with high surface area for extra efficiency.

Summary

450 Racks
Standard 48U rack, 1000mm deep
4kW to 35kW per rack
2N Configuration

Electrical

Dedicated HV Network with diverse feeds from the utility operator
2N Transformers
N+1 Generators
2N available
2N Electrical switchgear in separate fire compartments
2N UPS in separate fire compartments
2N+1 available
Dual 32 amp feed to every rack footprint
Up to 35kW 2N distribution per footprint available

Security

Perimeter palisade fence
High definition digital CCTV with 90 day retention
Access control system with man trap access restriction
Staff on site 24/7

Mechanical

N+1 chillers with dual power supplies from separate switchgear
2N available
N+1 separated and fully diverse pipework
2N available
N+1 air handlers with dual power supplies from separate switchgear
2N available
Underfloor, room and ceiling void fire detection system
Inert fire suppressing gas system

Siga as nossas instruções abaixo para garantir que tudo vai correr pelo melhor: são poucos e fáceis os passos que pode tomar antes da migração do seu servidor ocorrer e que irá garantir uma migração segura
Os servidores serão migrados por etapas, para minimizar os efeitos nos seus serviços alojados connosco. Vamos começar a migrar as máquinas em Setembro , mas antes de qualquer migração entramos em contacto consigo para planear a migração.
Faça o Backup de todos os dados do seu servidor e mantenha o backup num local seguro
Reinicie o seu servidor antes da migração
Reinicie o servidor em cada grande atualização ou instalação
Mantenha-se atento para as nossas próximas comunicações para ficar actualizado com os próximos passos, pois iremos notificá-lo sobre a data exata da migração do seu servidor
A noite antes da transferência, terá a opção de desligar o servidor para assegurar que os riscos associados ao procedimento pode ser reduzido ao mínimo
